Tunnel Fan Axial Flow Fan for Local Mine Ventilation

Every single member from our higher effectiveness product sales staff values customers' requires and organization communication for Centrifugal Induced Draft Fan, Extraction-type Local Ventilator Under The Mine, Centrifugal Fan For Power Plant. Relying on high-quality technical products and our efficient service, we have established our own professional image and reputation in the market. Looking forward to the future, we are full of confidence and believe that our sincerity, hard work and professional services will make our cooperation more successful! Our products and services are all based on meeting the needs of customers.

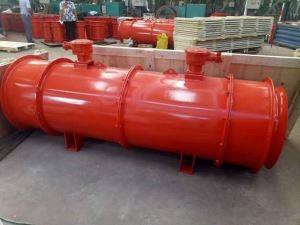

Mine Local Fan:

Fan Features

1. High efficiency: FBD series fans are well-designed and advanced in technology. The blades are designed with ternary fluid and are in the shape of a wing twist. The high-efficiency working area of the fan is large so the running fan will always be within the high-efficiency working range.

2. Low noise: FBD series fan adopts counter-rotating direct drive. Compared with the old fan, the guide vane device is reduced. While increasing the fan pressure, the airflow direction is straightened and the air friction sound is reduced. Outsourced duplex muffler, the operating noise of the whole machine can be controlled below 85 decibels (less than 35 decibels than the A sound level), with ultra-low noise characteristics, and has a significant effect on changing the noise environment of the confined space in the well

3. The wind pressure is relatively gentle, the surge phenomenon is small, the operation is also stable in the area of high wind pressure and small flow, the air supply distance in the well is long, and the adaptability to complex roadways

4. To improve the corrosion resistance and wear resistance of the blades and the body, the company applies thermal spraying technology to the manufacture of fans. According to the corrosive elements in the mine, more than 20 different materials are prepared, using supersonic arc spraying and high-speed flame. Spraying, the thermal spraying process is applied to the casing and blades, so that the blades are not rusted, wear-resistant, corrosion-resistant, and have the characteristics of long service life

Scope of application

Mine Local Fan, FBD series explosion-proof press-in axial flow local fans for mines are mainly used in mines and other industrial sectors where gas, coal dust, and flammable gases are transported. Construction of wells, local ventilators and long-distance ventilation of tunnels, etc.

Operating conditions of Mine Local Fan:

1. The working voltage of the fan is 380/660V or 660V/1140V and does not exceed ±5% of the rated value, and the power frequency is 50Hz.

2. The foundation for installing the fan should be firm and free of water around it. The height of the air inlet edge of the fan from the ground or top wall should not be less than 0.3m.

3. The matching air dryer should be able to withstand the high pressure of the ventilator.

4. The fan can be placed on the roadway floor or hung on the roadway wall. When used on the roadway floor, the suction port (collector end) of the fan cannot be immersed in water or cement.

Service life and safety of FBDNo5.0/2×5.5 press-in local ventilators:

The ventilators are designed to last at least 5 years and have an operating time of 13,000 hours before overhaul.

With our rich working experience and thoughtful companies, we have now been recognized as being a trustworthy supplier for Tunnel Fan Axial Flow Fan for Local Mine Ventilation. Also we support the delivery of absolutely free samples. We will serve new and old customers with perfect business philosophy, good products, reasonable prices and good reputation. No matter what you need, we will satisfy you. Welcome to inquire and cooperate!
