14inch Hot Sale AC Portable Ventilator for Air Change
Our company is committed to becoming one of the world's leading suppliers of Mine Explosion-proof Induced Draft Fan, Mine Main Fan-extraction Type, Roof Axial Flow Fan. We have obvious competitive advantages in terms of quality, price, delivery, technology and service, and win the trust of customers with stable quality and considerate service. Over the years, our company has always adhered to the principle of valuing contracts and keeping faith, and has been unanimously recognized by the whole industry and customers. We have been adhering to the business tenet of 'quality is the basis for the survival of enterprises, integrity is the foundation of enterprises'. Under the business philosophy of giving back to the society by ensuring quality, our company, as an advanced enterprise, has always insisted on developing, manufacturing and selling products that are trustworthy by customers. We have won the support and trust of new and old customers all over the world with our superior comprehensive strength and excellent product quality.

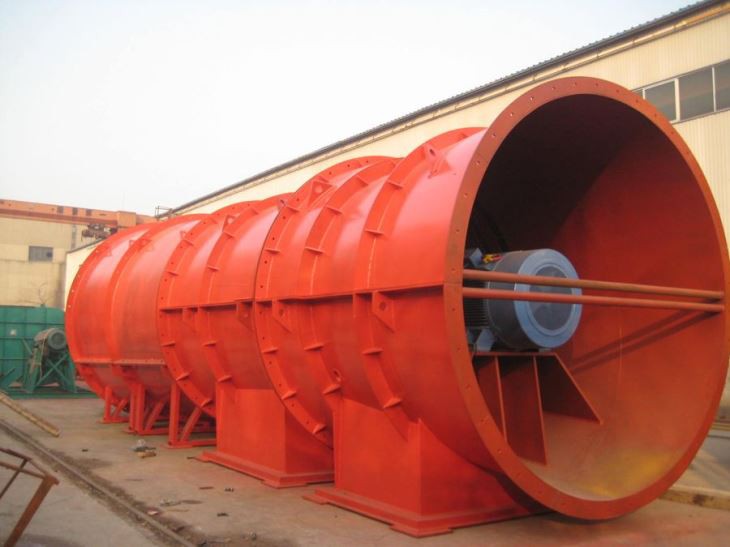

Exhaust Fan for Mining:
The manufacturing plant guarantee and after-sales service matters
1. Provide technical support to users for a long time, and pay a return visit to users from time to time;
2. Implement one year of repair and maintenance;
3. As long as it is not damaged by human factors during the warranty period, our factory will repair it free of charge. If it is indeed a quality problem, it can be returned or replaced. Devices and materials that are replaced beyond the warranty period will only be charged the cost.

Series | No. | Air volume (m3/s) | Full pressure(Pa) | Motor model | Power (KW) |
FBCDZ(B)-8 (n=740r/min) | 27 | 63.7-161.0 | 1488-4313 | YBF560S2-8 | 2×355 |
28 | 71.1-179.8 | 1600-4638 | YBF560M2-8 | 2×450 | |
FBCDZ(B)-10 (n=590r/min) | 21 | 23.9-60.5 | 572-1659 | YBF315L-10 | 2×75 |
22 | 27.5-69.5 | 628-1820 | YBF315L-10 | 2×75 | |
23 | 31.4-79.5 | 686-1990 | YBF355M1-10 | 2×90 | |
24 | 35.7-90.3 | 747-2166 | YBF355M2-10 | 2×110 | |
25 | 40.3-102.1 | 811-2351 | YBF355L2-10 | 2×160 | |
26 | 45.4-114.8 | 877-2542 | YBF355L3-10 | 2×185 | |
27 | 50.8-128.6 | 946-2742 | YBF450S3-10 | 2×200 | |
28 | 56.7-143.4 | 1017-2949 | YBF450M2-10 | 2×250 | |
29 | 63.0-159.3 | 1091-3163 | YBF450M2-10 | 2×250 | |
30 | 69.7-176.4 | 1168-3385 | JBO710M1-10 | 2×315 | |
32 | 84.6-214.0 | 1329-3851 | JBO800S2-10 | 2×450 | |
34 | 101.5-256.7 | 1500-4348 | JBO900S1-10 | 2×560 | |
36 | 120.4-304.7 | 1682-4874 | JBO900M1-10 | 2×710 | |
FBCDZ(B)-12 (n=490r/min) | 25 | 33.5-84.8 | 559-1621 | JBO355S2-12 | 2×110 |
26 | 37.7-95.3 | 605-1754 | JBO355S2-12 | 2×110 | |
27 | 42.2-106.8 | 652-1891 | JBO400S-12 | 2×132 | |
28 | 47.1-119.1 | 702-2034 | JBO400M-12 | 2×160 | |
29 | 52.3-132.3 | 753-2182 | JBO400M-12 | 2×160 | |
30 | 57.9-146.5 | 806-2335 | JBO710S1-12 | 2×200 | |
32 | 70.3-177.7 | 916-2656 | JBO710M1-12 | 2×250 | |
34 | 84.3-213.2 | 1035-2999 | JBO800S1-12 | 2×315 | |
36 | 100.0-253.1 | 1160-3362 | JBO900S1-12 | 2×450 | |
38 | 117.6-297.6 | 1292-3746 | JBO900M1-12 | 2×560 | |
40 | 137.2-347.2 | 1432-4150 | JBO900M2-12 | 2×710 | |
42 | 158.8-401.9 | 1579-4576 | JBO900L2-12 | 2×1000 | |
44 | 182.6-462.1 | 1733-5022 | JBO900L3-12 | 2×1250 |
Main inspection equipment (instrument) list
No. | Name | Specification and type | Quantity |
Main inspection items (use) |
1 | Feeler | 5 | Radial clearance at the tip of the blade | |
2 | Caliper | 30 | Outer diameter, main casing inner diameter of hub and impeller | |
3 | micrometer | 20 | Impeller shaft-hole diameter | |
4 | Inner diameter centimetre | 15 | Impeller shaft-hole diameter | |
5 | Insulation resistance meter | ZC-T | 2 |
Motor stator winding cold insulation resistance |
6 | Vibration meter | ZXP-C62 | 1 | Vibration of ventilator |
7 | Noise tester | 1352A | 1 | Operating noise of ventilator |
8 | Portable wind gauge | FYF-1 | 1 | inlet and outlet wind speed of ventilator |
9 | Motor economic operation tester | DJYC | 1 | Motor’s current, voltage, power, cosφ, efficiency, etc. |
10 | Multi-function motor tester | HS-8 | 1 | Motor’s current, voltage, power, etc. |
11 | Psychrometer | 272-A | 2 | Current’s humidity, temperature, density, etc. |
12 | Aneroid barometer | DYM3 | 1 |
Ambient atmospheric pressure, temperature, etc. |
13 | Compensatory microbarometer | YJB-1500 | 1 | Ventilator aerodynamic performance (air volume, pressure) |
14 | Compensatory microbarometer | YJB-2500 | 1 | Ventilator aerodynamic performance (air volume, pressure) |
15 | Clamp ammeter | M266F | 2 | Ventilator test-drive |
16 | Clamp ammeter | MS2001 | 2 | Ventilator test-drive |
17 | Dynamic balance testing machine | DH-1600/Φ1800 | 1 |
Impeller dynamic balance correction |
18 | Dynamic balance testing machine | DH-5000/φ4500 | 1 | Impeller dynamic balance correction |
19 | Standard Test Vane | Φ500~Φ2000mm | 4 | Ventilator aerodynamic performance (air volume, wind pressure) |
20 | Electronic control cabinet | 15~250kW | 5 | Ventilator running current and power, etc. |
21 | Pitot | 1 | Ventilator inlet and outlet wind speed, air volume, etc. |

Exhaust fan for mining is a tool used in the mining industry, because the working environment in the mine is dark and humid and very prone to explosions and other accidents, so the mine needs fans to carry out related work to ensure the safety of underground work.
Mine air refers to the mixture of fresh air from the ground and harmful gases and floating and sinking generated underground, its main characteristics are:
1. The oxygen concentration decreases and the carbon dioxide concentration increases;
2. Mixed with various harmful gases, mainly carbon monoxide, hydrogen sulfide, sulfur dioxide, carbon dioxide and biogas and other toxic and harmful and explosive gases;
3. Mixed with coal dust and rock dust;
4. The temperature, humidity and pressure of the air change. Under normal circumstances, the temperature rises in winter and decreases in summer; Increased humidity, higher relative humidity; In press-in ventilated mines, the pressure becomes greater; In extractive ventilation mines, the pressure becomes less.
What is a mining fan?
Exhaust fan for mining is a special mining fan, suitable for working in dust, smoke, wet mines, so mining fans can also be called mining fans, mining fans.
We strive to implement the business philosophy of 'determining the needs of customers as the starting point and satisfying the needs of customers as the end point' throughout our work. All employees of our factory will help you to succeed with first-class 14inch Hot Sale AC Portable Ventilator for Air Change, thoughtful service and low prices! With us your money in safe your business in safe. We are striving to reach the goal of satisfying consumers, employees, society and investors, and sincerely look forward to all cooperation.
