In deep mining shafts, long-distance tunnel construction, and underground engineering projects, ventilation resistance increases dramatically as excavation depth expands. Standard single-stage fans often fail to provide the high static pressure required for long duct runs. Counter-rotating axial flow fans solve this challenge by utilizing two contra-rotating impellers working in series to deliver significantly higher pressure.
Hengding (Hnding) manufactures heavy-duty counter-rotating axial mining fans featuring modular housing, protective industrial coatings, and rugged support structures designed to ensure reliable underground air delivery.
Key Technical Specifications & Features
| Feature / Component | Technical Specification & Standard |
| Fan Type |
Heavy-Duty Counter-Rotating Axial Fan (Multi-Stage) |
| Coating & Finish |
High-visibility yellow anti-corrosion industrial coating for underground visibility |
| Air Inlet Design |
Streamlined intake cone with protective steel mesh to prevent debris ingress |
| Casing Construction |
Thick-gauge rolled steel multi-stage modular housing joined by heavy-duty flanges |
| Electrical Enclosure |
External IP-rated / explosion-proof junction boxes mounted on each stage |
| Mounting Base |
Heavy welded steel mounting feet for stable floor or rail installation |
| Applications |
Mine main/auxiliary ventilation, long-distance tunneling, underground excavation |
Core Advantages & Engineering Highlights
1. Counter-Rotating Efficiency & High Static Pressure
Dual-Stage Contra-Rotation: Front and rear impellers rotate in opposite directions driven by independent motors, eliminating rotational energy loss and significantly increasing total pressure output.
Long-Distance Air Supply: Designed to overcome high friction loss over long duct lines, guaranteeing adequate fresh air at deep working faces.
2. Modular Multi-Stage Housing & Heavy Mounting Base
Sectional Modular Design: Flanged multi-stage casing allows convenient disassembly, transport through narrow mine shafts, and fast on-site reassembly.
Integrated Support Feet: Heavy-gauge welded steel mounting feet anchor securely to concrete pads or steel rails, absorbing operational vibration.
3. Rugged Electrical Protection & Easy Maintenance

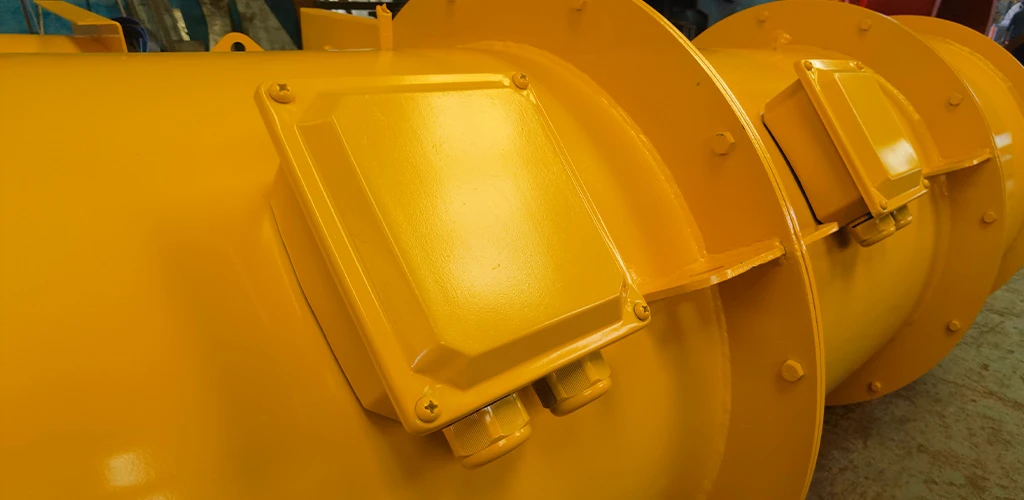

External Terminal Junction Boxes: Each fan casing segment features a top-mounted independent junction box, enabling convenient electrical connection and maintenance.

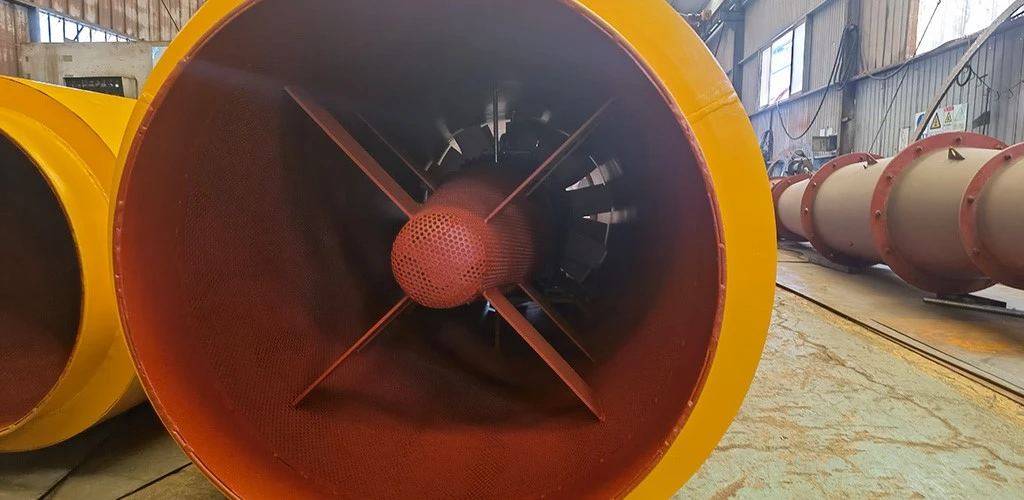

Streamlined Intake & Screen: Streamlined inlet cone with protective mesh maximizes air intake while shielding internal impellers from solid particle damage.
